Bookmap Quant Solution: Setup and Features

Activate Bookmap Offline

To support a fully secure solution, Bookmap Quant clients can use Bookmap Offline Activation. Bookmap is capable of operating without internet access. Users can configure a firewall to allow external access to their custom adapter only.

Steps for Offline Activation:

1. Launch Bookmap.
2. Close the internet connection warning. Click on "Click to insert license key."
3. Input your license key (paste with Ctrl+V). Hit "Activate".
4. Follow on-screen instructions:
   • Find "activation request.bin" in C:\Bookmap\Config folder.
   • Email it to support@bookmap.com with "Offline Activation" in the subject line.
5. Save the "activation response.bin" file from support in the same folder.
6. Restart Bookmap.

Bookmap Quant Solution: Setup and Features

Overview

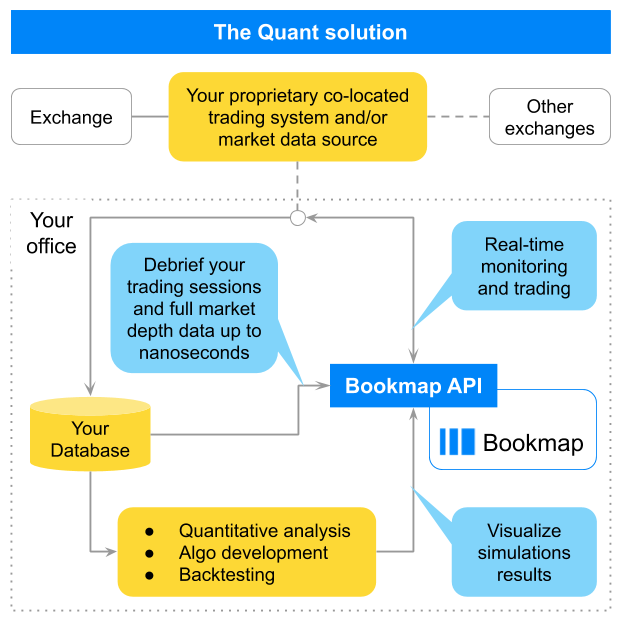

The Bookmap Quant Solution is designed for proprietary HFT firms, banks, and trading rooms requiring seamless integration with internal data and trading systems. This advanced solution supports proprietary market data, custom indicators, and offline activation, ensuring maximum flexibility and security for enterprise-level trading environments.

Key Features

Bookmap Quant includes all built-in features plus Bookmap’s paid add-ons. It also supports custom indicators, order queue calculations, and integration with proprietary data sources. Some use cases include:

• Connect Personal Market Data & Orders:
  • Use L0 API to develop an adapter.
  • Utilize Bookmap Recorder to produce Bookmap-readable files, allowing custom data replay in Bookmap's Replay mode without affecting simulation performance.
  • Generate a Bookmap readable plain text file.
• Custom Signal Integration:
  • Embed and draw thousands of custom signals at the adapter level using the methods above (each may contain thousands of data points).
  • Alternatively, compute some signals via the regular L1 API.
• Visualization of orders’ place in the queue.
• Tools to grab all events from a selected chart area into a separate window or export as a csv file
• Offline license

Price

Bookmap Quant’s license starts at $499/seat/month, paid annually. Test the solution with a one-month trial for up to 5 seats at $500. For further details, custom development, or special offers, reach out to info@bookmap.com.

Security

Bookmap Quant prioritizes security, offering Offline Activation. It operates without needing internet, and users can adjust their firewall to grant external access solely to their custom adapter.

Bookmap Recorder

A primary application of Bookmap Quant is reviewing simulations and backtest outcomes. While trading session reviews occur less often, simulations might run thousands of times daily. To ensure Bookmap doesn't hinder the simulation process (typically faster than Bookmap's 30-50k events/second rate), the Bookmap Recorder utility, BookmapRecorder.jar, comes in handy.

It converts custom data into a format Bookmap can replay. Its processing speed is about 150-200k events/second, creating files of roughly 12 bytes per event. Users can incorporate this recorder into their simulation software, later utilizing Bookmap to playback selected files. In terms of data replay, Bookmap Recorder is as effective as the direct use of the L0 API.

Support & Inquiries

For assistance, reach out to support@bookmap.com or visit the B2B Solutions page for more information.
