Supporting Features
Supporting Features
Time slices

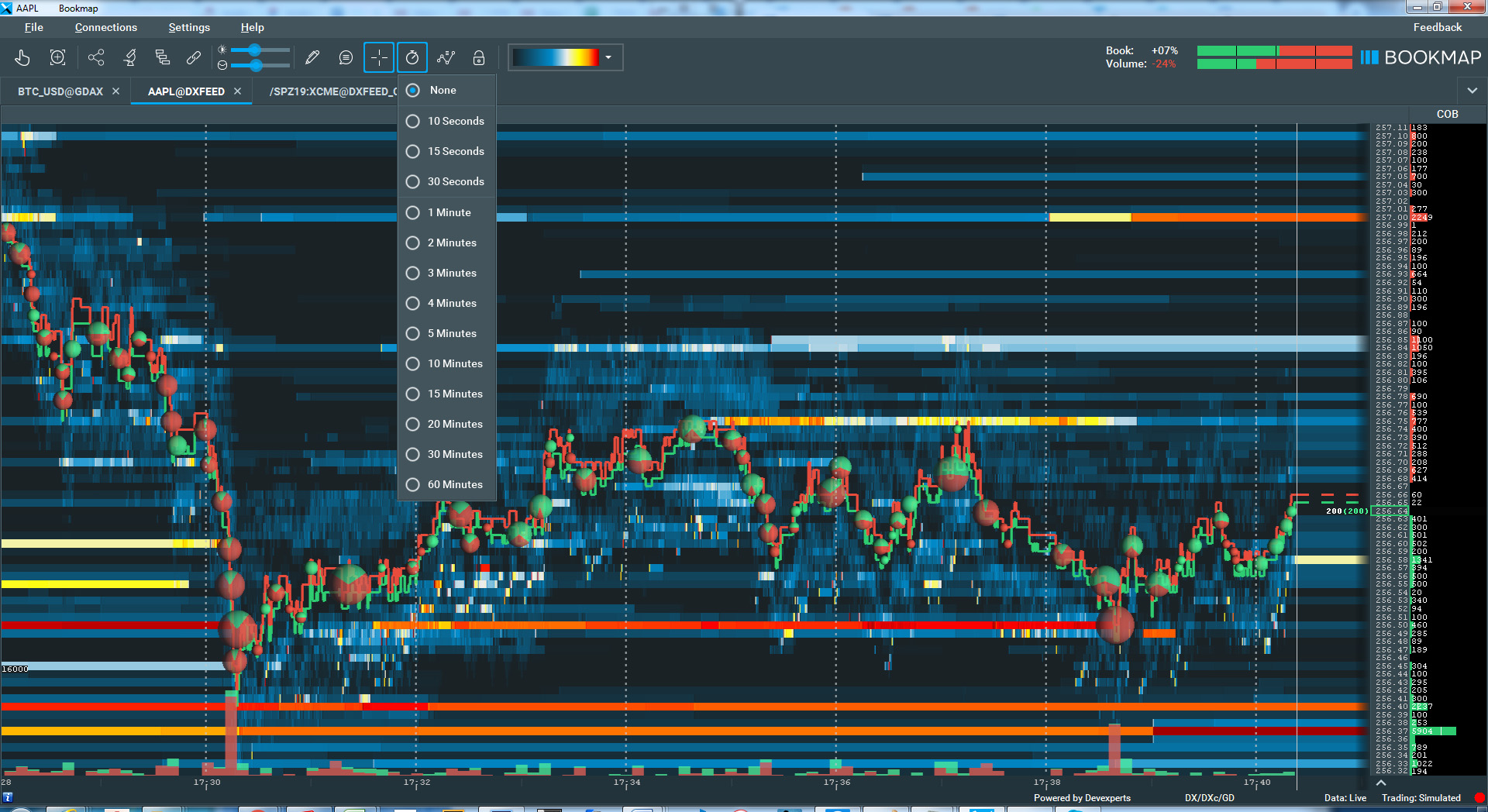

To set the chart range quickly, click the Stopwatch icon and pick the desired range. This determines the time span visible on the main chart. NOTE: this setting affects any synced charts.
The Bookmap chart displays dotted vertical lines, indicating the space between two key timestamps. The duration between these lines is based on the chart's actual time range.

Zoom in and out
This can be done in several ways:
- Use the zoom-in and zoom-out buttons on the control panel.
- Scroll using the mouse wheel over the heatmap or price axis.
- Left-click and hold while moving the mouse cursor left and right on the time axis or up and down on the price axis.
- Click the "Zoom by Drag" button on the toolbar, then select the area to focus on with green-dotted lines. Releasing the mouse zooms into the specified chart section.
- To zoom back out, press ctrl+z. See how it works in this video.
Drag Mode
Drag mode provides a detailed view of the historical order book, letting traders explore with precision.
Moving the Chart: Simply left-click and drag the chart horizontally or vertically. The hand icon appears slightly pressed when drag mode is on.
Scrolling in Drag Mode: Depending on your Bookmap subscription, you can scroll up to either 1 hour or 24 hours. Use left-click and drag left and right, or employ arrow keys for one-pixel movement. For a ten-pixel jump, hold the shift key while using the arrow keys.
Zooming in Drag Mode:
- When zooming in using the scrolling wheel, Bookmap will keep the chart centered on the cursor location.
- Traders can also use the zoom in and out icons while in drag mode. In this case, Bookmap will keep the presentation anchored to the middle point of the current chart view.
Note: For columns that calculate support session range volume profile (SVP, STC, SQC), the displayed values may change in drag mode because the right edge of the chart changes.
Please note that if you use drag mode while in live mode and then return to a previous segment, new data is not added to the SVP column because that boundary is no longer visible."
Vertical Re-centring

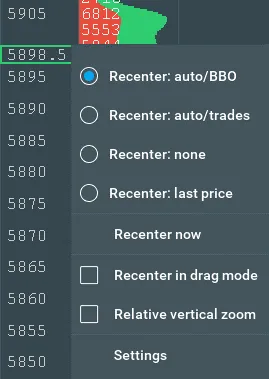

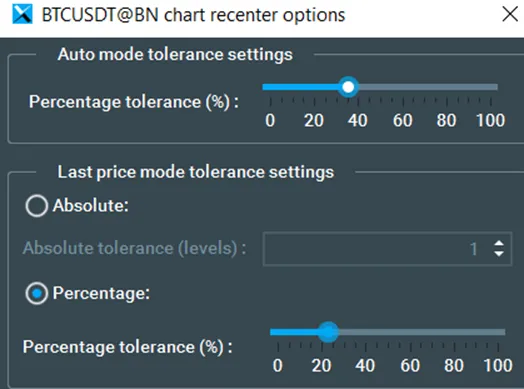

Bookmap provides auto-adjustment of the chart on the vertical axis to display the entire price movement. Right-click on the price ladder to select and configure your preferred setting.
