Tradermap Lite

What is Tradermap Lite?

Tradermap Lite is a simplified version of the Tradermap Pro add-on, specifically designed to operate automatically on ES, NQ, MES and MNQ Futures. This add-on effectively filters out Market Maker bots from the heatmap. For enhanced features and greater flexibility, consider upgrading to Tradermap Pro.

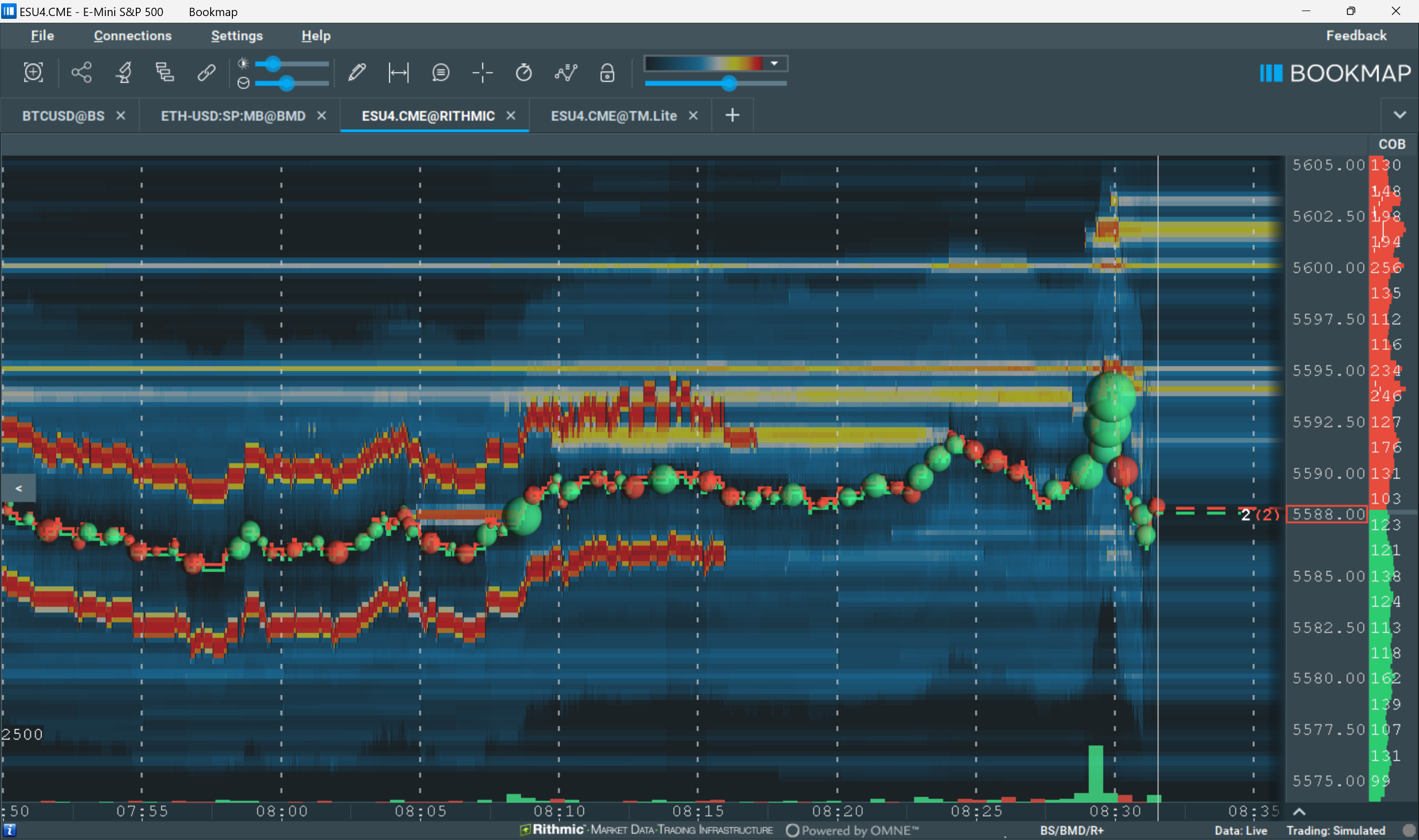

Original ES heatmap:

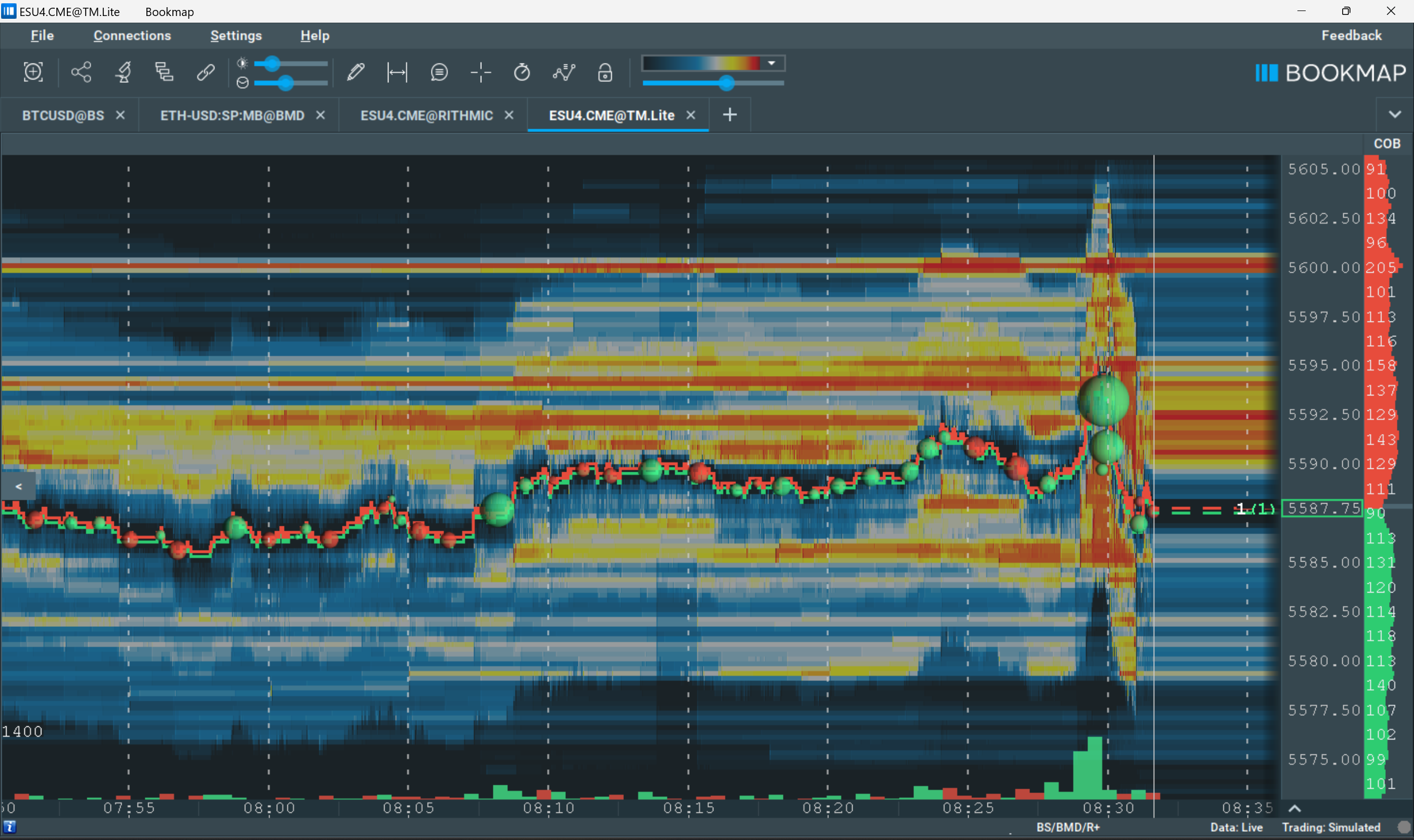

Tradermap Lite applied to ES heatmap:

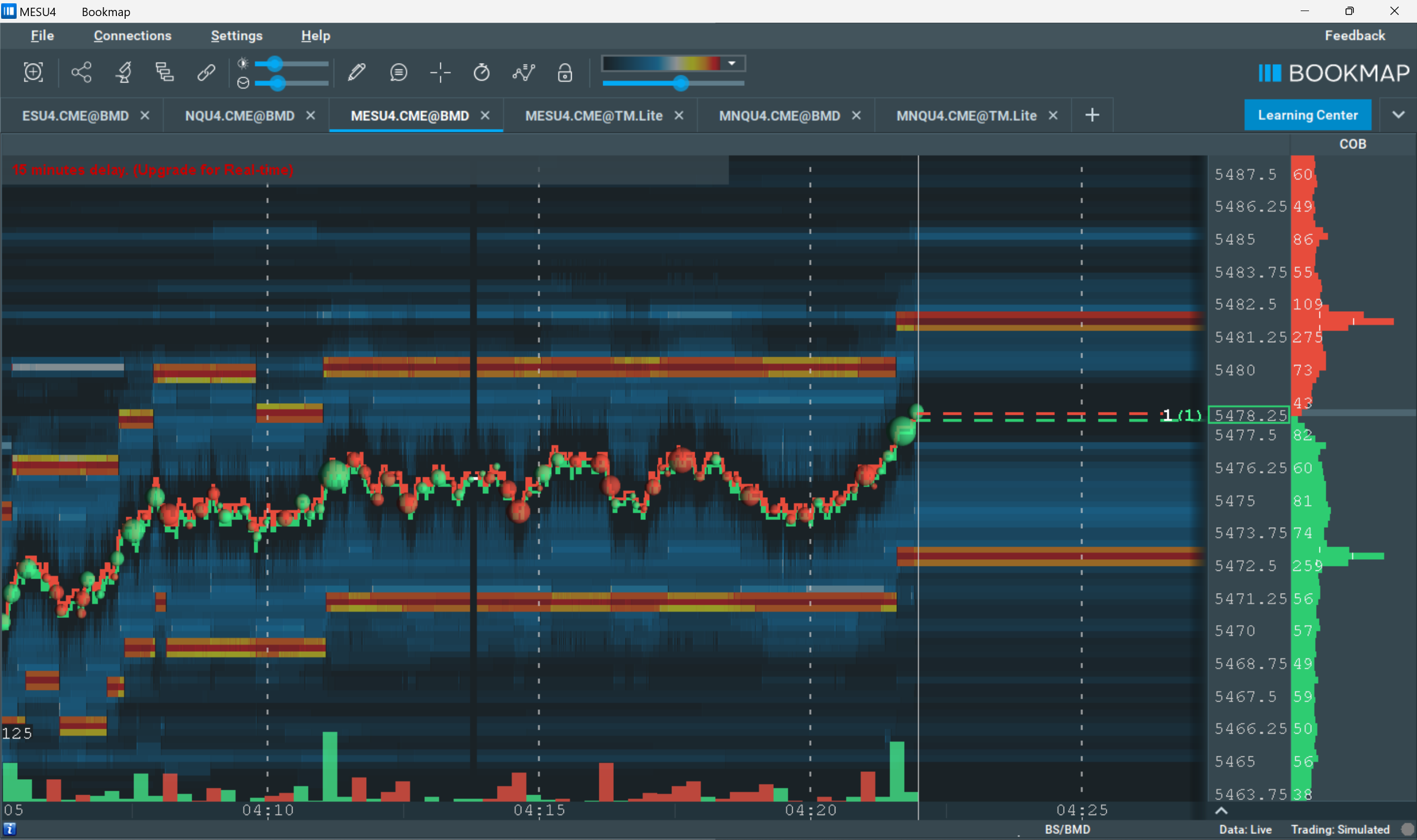

Original MES heatmap:

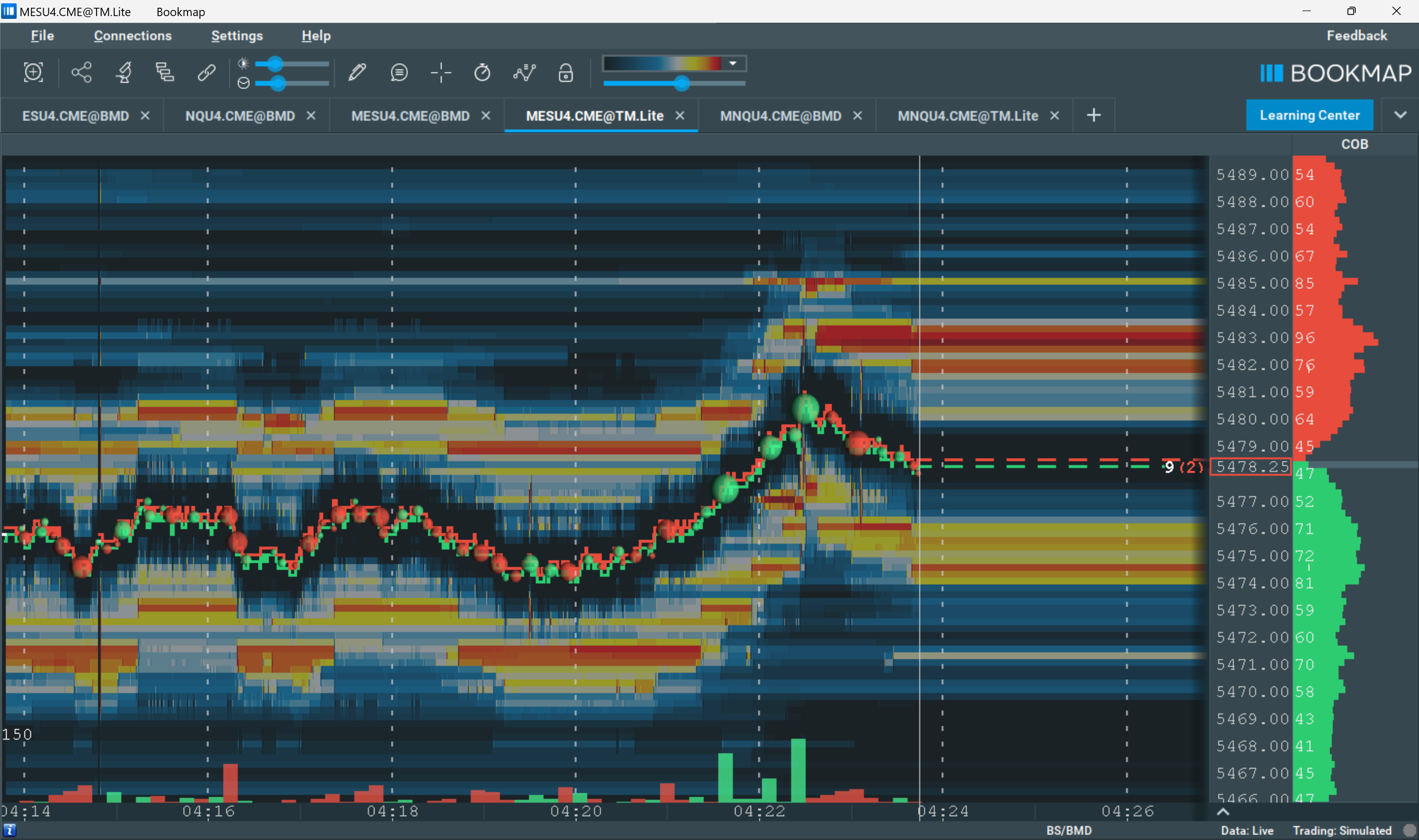

Tradermap Lite applied to MES heatmap:

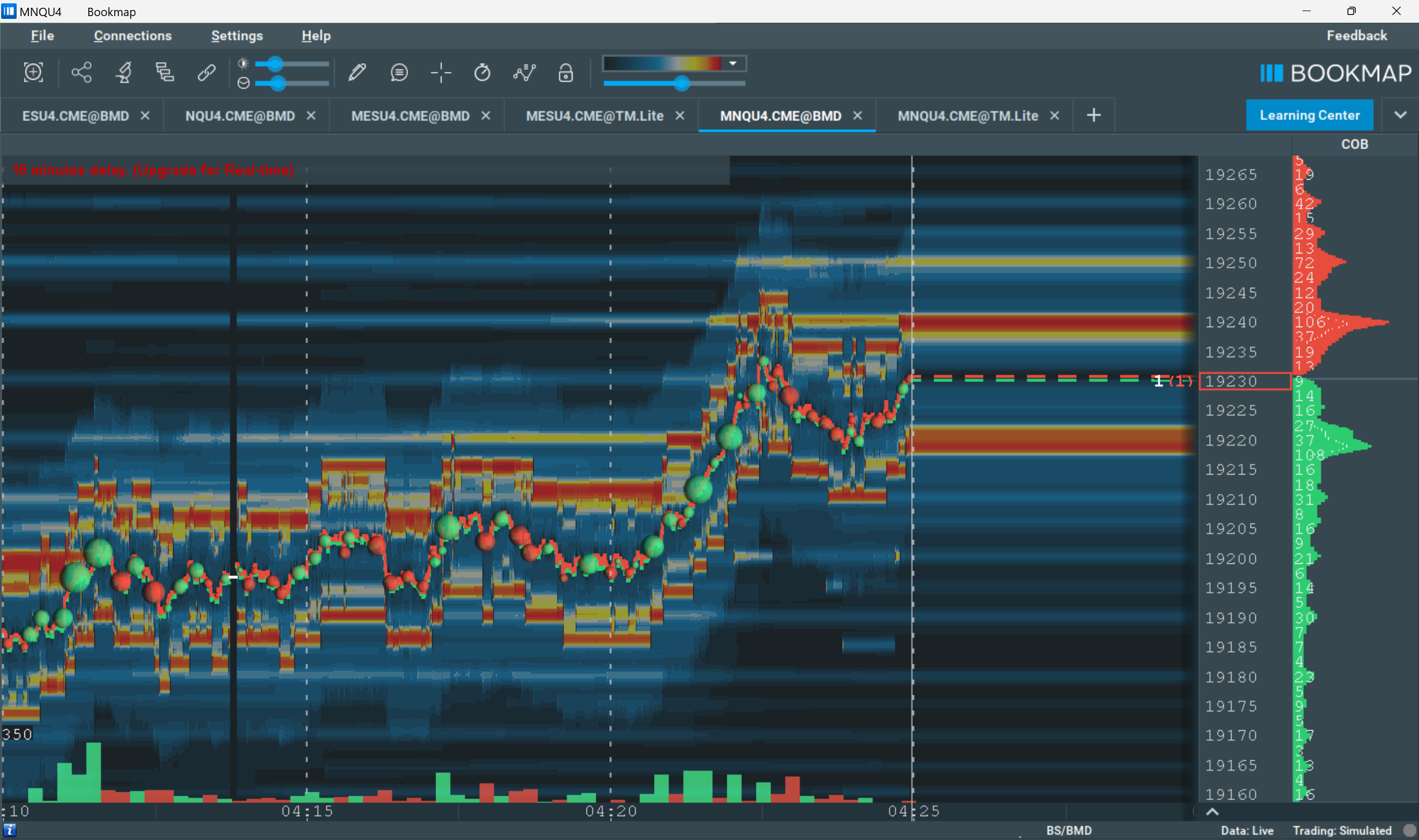

Original MNQ heatmap:

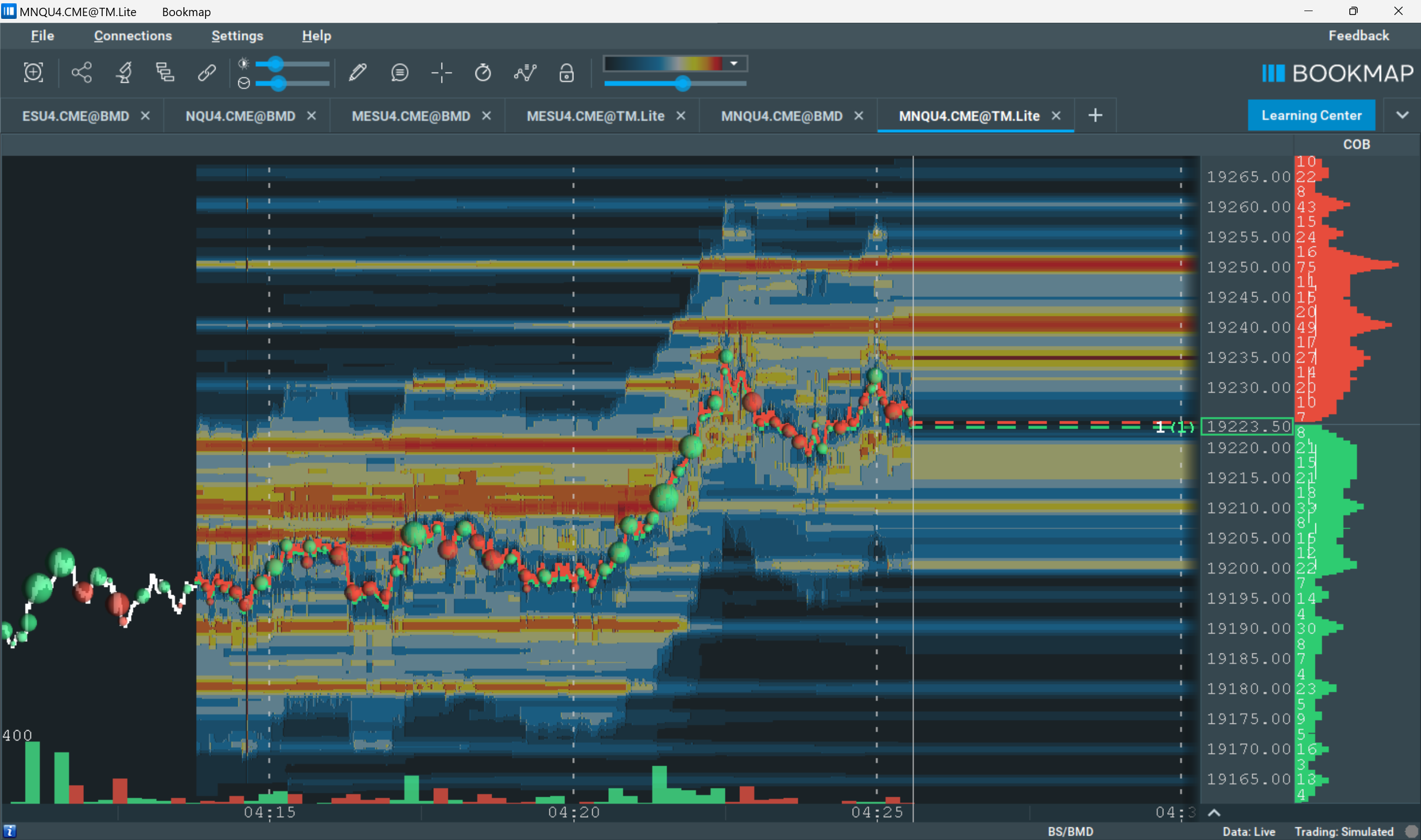

Tradermap Lite applied to MNQ heatmap:

Filters

Tradermap Lite offers a variety of filter options to customize your trading experience:

Standard sensitivity

Filters out most bots. While effective against the majority of bots, some specific bots may still appear on certain instruments.

High sensitivity:

Maximizes bot filtering.Removes nearly all bots across all instruments. Be aware that this setting might also exclude some common orders. Use it with caution to avoid unintended order exclusions.

Low sensitivity:

Minimal interference with regular orders. This filter has little to no impact on normal orders but may filter out many (though not all) bots, providing a balanced approach between order visibility and bot exclusion.

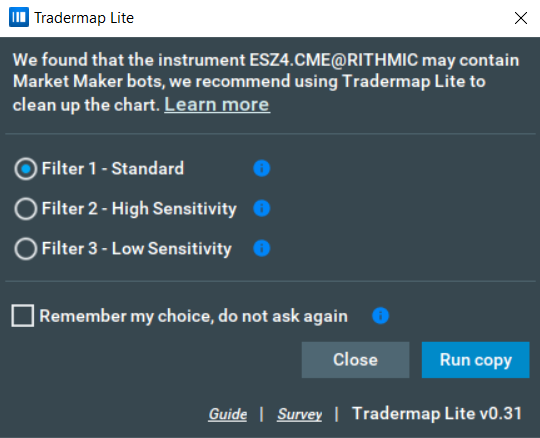

Subscription popup

When you subscribe to a new instrument, a popup will appear prompting you to create a Tradermap Lite copy of that instrument.

Tradermap Lite FAQ

What is the price of the Tradermap Lite add-on?

Tradermap Lite is available for free. Take this opportunity and try it out today!

What instruments can I use Tradermap Lite with?

Tradermap Lite can be used with the ES, NQ, MES, and MNQ instruments through Rithmic, BookmapData, and IqFeed connections. If you want to filter Market Makers from other instruments, consider using Tradermap Pro.

Why can’t I read the heatmap like before? These large liquidity bands are making it very hard to read!

This is due to a stacker algorithm from a larger player, which positions itself in the market around 8am EDT. This algorithm shadows the market all day with high liquidity on three price levels, moving about 3-4 points away from both the best bid and the best offer. Its goal is to get a good position in the order book queue so that it can be filled before others when trade conditions are right. Unfortunately, this algorithm makes the heatmap harder to read, but Bookmap’s heatmap is working correctly and shows the true state of the market.

Is it possible to use Stops and Icebergs on top of Tradermap Lite chart?

Yes, it is possible to use Stops and Icebergs on the Tradermap Lite chart. Follow the Stops and Icebergs guide to read more.

Is it possible to trade from the Tradermap Lite chart?

Yes, Tradermap Lite supports cross-trading from the Tradermap Lite chart to the original instrument. Cross-trading on copies works the same as on other instruments. You can read more about cross-trading here

Installation

Please note that the Tradermap Lite is only compatible with Bookmap version 7.4.0 build 11 or higher.

To install on Bookmap click Settings -> Manage plugins -> L1 Addons, find Tradermap Lite in the list, and click "Install" button. For more detailed info click here

To activate add-on, switch to ES instrument, open Settings -> Configure addons, and select the checkbox next to the "Tradermap Lite" toggle.

Versions changelog

0.15

Improved stability. Added warning panel. Added IqFeed support.

0.09

Improved stability. Added feedback form. Added ability to filter NQ, MES and MNQ instruments.

0.04

First version of Tradermap Lite, filters out Market Maker bots on ES Futures.
