Multibook Customizer

What is the Multibook Customizer add-on?​

Multibook Customizer is a Bookmap add-on that lets you combine up to 5 different instruments of your choice, from different exchanges or the same exchange, into a single custom synthetic instrument.

This add-on is extremely beneficial for advanced traders that want complete control over creating custom synthetic instruments. Newer traders with specific requirements or instruments in mind may also find the Multibook Customizer add-on very valuable.

Multibook Types​

Bookmap offers 3 types of Multibook. Here are the main differences:

Multibook via Bookmap Data​

This is a simple and fast solution, but still powerful. It is for users who have Bookmap Desktop installed and want to use predefined synthetic instruments (created by Bookmap). The only downside of this type is low flexibility - you can use only predefined combinations of instruments, without the option to customize them. You can read more about how to access and connect to Bookmap Data Multibook instruments here.

Multibook Web​

This is the easiest way to connect to Multibook - just open it in a web browser. It is free for everyone for a limited time. Just like Multibook via Bookmap Data, it does not allow much customization.

Multibook Customizer (Bookmap Desktop Add-on)​

This is the most flexible Multibook option. You can combine any instruments, choose your own price tick, and set the desired granularity. It works like a regular Bookmap add-on. You can find installation instructions below.

Why Use Multibook Customizer?​

By creating custom synthetic instruments, you’ll gain access to increased amounts of data and trading activity, all based around the specific data you want to see. This can lead to increased confidence and better trading decisions, as your understanding of market conditions and trends deepens with more tailored data.

Multibook Customizer gives you complete control over which instruments to combine, allowing you to:

  • Develop unique strategies based on synthetic instruments
  • Visualize aggregated trading activity across multiple exchanges
  • Combine multiple order books into one
  • See a more complete picture of the overall market
  • Spot market aggressors in real-time, across different exchanges
  • View massive amounts of data conveniently from only one chart
  • Gain confidence in specific support and resistance levels

For experienced traders, this is the ideal add-on for tailoring market data to exactly what you need to see, whether it’s across multiple exchanges or focusing on a specific exchange’s data and comparing it to others.

How to Configure Multibook Customizer​

To create a synthetic instrument with Multibook, you need to be connected to one or more exchanges, and to be subscribed to the instruments you want to combine. We recommend traders start using Multibook with these adapters: Binance, Bitstamp, Coinbase, and Huobi. These are typically the easiest and most stable.

If you go to Settings → Configure add-ons and then select Multibook, you will see the settings parameters to edit or create a Multibook instrument. You can combine anywhere from 2 to 5 instruments into one consolidated instrument.

It is important to make sure you are connected to some exchanges in these instruments to ensure everything works correctly.

To create a Multibook chart, first you must enter a name for this synthetic instrument, as no instrument can be opened in Bookmap without a designated, unique name. Next, you can choose the details of what you want to see from each instrument, including which exchanges and features to include. Let’s move on to the checkboxes, and we will come back to tick size and size granularity after.

  • Depths: This checkbox appears next to each added instrument, and traders should check this box to see the liquidity of each instrument combined in the heatmap. You must select at least one to generate a chart, and selecting more than one will completely merge each instrument’s liquidity data into one.

  • Trades: These toggle the trade bubbles and volume delta for each added instrument, and represent aggressive market order transactions. You can choose to see only the trades of a single instrument on an exchange, or multiple trades across exchanges. Please note, if you select more than one instrument you may see trades transacted above or below the best bid or ask. This is because prices are different across exchanges, as previously mentioned, and so trades from one exchange/instrument may not match the average best bid or ask of the combined instrument . You can also edit which trades are visible after the Multibook instrument has been created, allowing you to tweak your heatmap after seeing how the different instruments meld together.

  • Best Bid and Offer (BBO): If you don’t select any BBO, the chart will show two lines by default. This is the virtual mid-price across an aggregate of the instruments you have chosen.

    • You can also select to view the BBO of each individual instrument, and modify its color. This can be done either via preset colors or using a color picker
    • The name of the instrument and exchange is shown when you hover your mouse over the BBO lines. You can also modify which BBOs to see after the Multibook instrument has already been created, allowing you to adjust your Multibook instrument just as you can with adjusting the visible trades.

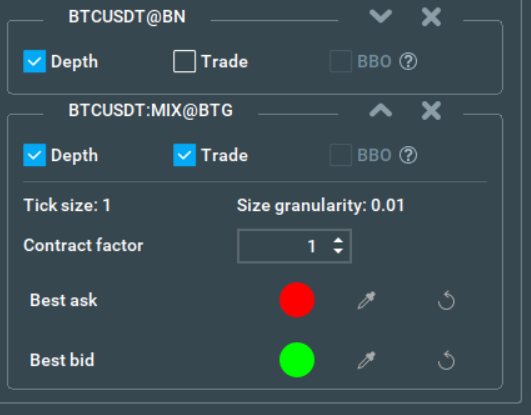

scrnsht

If you want to compare the BBO between several instruments in the Multibook chart, you must enable the corresponding BBO checkbox(es) of any instruments you wish to include.

Their default colors are set randomly (unfortunately this means collisions may occur), and for the best bid and best ask lines of a single instrument, colors remain the same. You can change the color of any line with a color picker that can be found by clicking on the “expand” button near the corresponding instrument name.

scrnsht

Use Cross BBO add-on to see original instruments' BBO lines.

Tick Size and Size Granularity​

These values have already been optimised for the default Multibook instruments, but you will need to experiment if you want to create your own synthetic instruments.

Tick size is the vertical scaling of price levels. In other words, it is the minimum price change. This will vary depending on your particular trading style and how finely you want to see changes in price.

Size granularity is the minimum size of transacted trades and liquidity in the order book you would like to see, as well as the minimum size to trade.

Multibook and synthetic instruments​

Currently, there are three more add-ons that can create synthetic instruments, namely Tradermap Pro, Tradermap Lite, and Instrument Copy.

The Multibook add-on works with Tradermap Pro/Lite instruments, but does not work with Instrument Copy and Multibook (you can't consolidate consolidations) instruments.

Cross-trading redirects orders to the instruments from which copies were created. For example, you created a Tradermap Pro instrument (copy) from ES@Rithmic, then consolidated this copy. Now you can cross-trade on ES@Rithmic even though it has not been consolidated.

div

Notes​

  1. Users are free to combine any instruments. However, we recommend only using the current version of the add-on with cryptocurrencies.

  2. To create a Multibook with the instrument you are interested in, you need to subscribe to it first.

  3. If you unsubscribe from one of the instruments, you will automatically unsubscribe from all the Multibook synthetic instruments that use it.

  4. The performance of Multibook with futures products may be worse than with spot. This will be fixed in future releases.

Need help? Please join our Discord Community Chat here: https://discord.gg/rR2XQpzjwp.

div

Multibook Customizer FAQ​

How many instruments can I consolidate per Multibook chart?​

You can combine anywhere from 2 to 5 instruments into a single Multibook chart.

What exchanges are supported?​

All exchanges can be added manually to Multibook, but Multibook is most useful for cryptocurrencies.

What Bookmap version Multibook can run with?​

Multibook can be used with latest Bookmap versions 7.6, and above.

Can I trade from the Multibook chart?​

Yes. You can use Bookmap cross-trading to trade consolidated instruments.

How much does Multibook Customizer cost?​

The Multibook Customizer add-on is available for Global+ (Global Plus) subscribers. Please see our package comparison page for up to date pricing information.

Is the add-on available for Mac?​

Yes, however the latest build isn’t optimized for Mac. This means you may run into performance issues. In such cases, you will have to manually allocate additional memory to Bookmap, since the slider in the application doesn’t work. You can do this from the File menu on your Mac, selecting Get Info, then Memory (in versions before Mac OS 8.5, you only need to select Get Info).

div

How to Install Multibook Customizer​

Multibook Customizer is part of Global Plus subscription. If you are a free (Digital), Digital Plus, or Global subscriber, first you need to upgrade to Bookmap's Global Plus package. Click here to upgrade.

This add-on takes advantage of the new Add-ons Manager feature, which simplifies both the installation and updating process. If you'd like to learn more about the Add-ons Manager and how it can benefit your experience, please visit the following page.

Versions changelog​

1.35​

Improvements:

  1. Added the cross-trading.
  2. Updated UI.
  3. Added the history. The addon now loads history from the instruments that are included in the consolidation.
  4. Added NPS feedback panel.
  5. Improve consolidation instrument default name.

Fixed bugs:

  1. Fixed problem with auto-subscription when enable addon.
  2. Fixed a rare crash "Strategy life cycle is violated" when disable addon.
